Zinc Coated Galvanized Steel Prop
- Model
- Scaffold Shoring Steel Post
Item specifics
- Type
- Adjustable Shoring Steel Props
- Application
- Mall, Sports Venues, Leisure Facilities, Warehouse
- Material
- Q235
- Advantage
- Stable, Easy Assemble
- MOQ
- 1000 Pieces
- Surface treatment
- Galvanized Zinc or Color Painted
- Color
- Silver, Blue, Red, Orange and so on
Review
Description
Q235 Steel Adjustable Steel Props

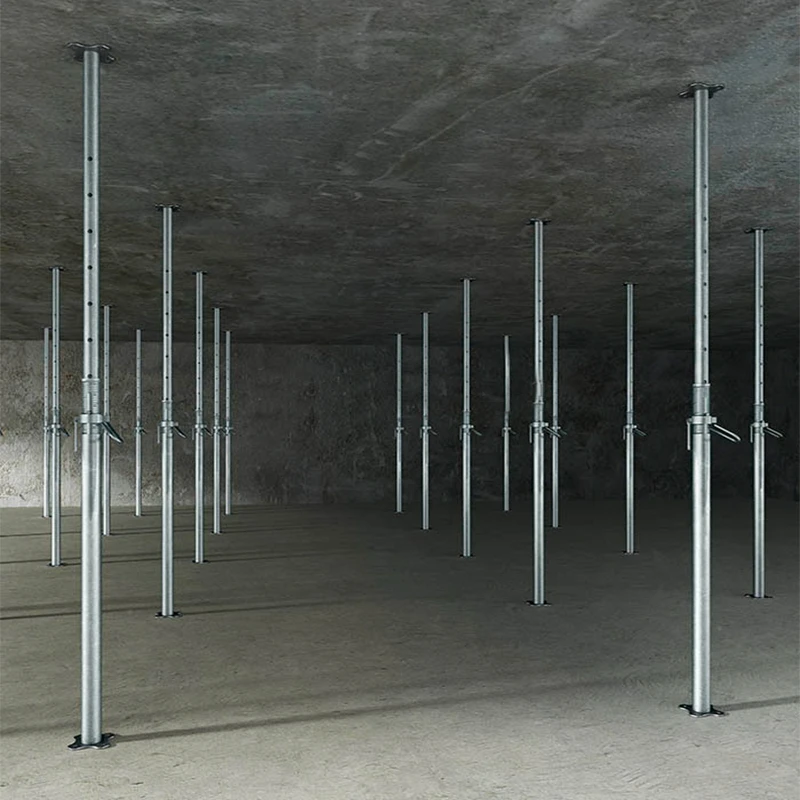

Steel props are temporary support structures used in construction to support formwork, walls, ceilings, and other structural elements. They are often adjustable in length and have strong load-bearing capabilities, making them suitable for a wide range of construction applications. Steel props are commonly used in building construction to provide temporary support during various stages of the construction process.
Light Duty Prop - Spanish Prop ( Wall Thickness 1.4 - 2.5 mm ) | ||
Height | Inner Tube | Outer Tube |
|
Min 0.8m - Max 1.4m
|
40mm
|
48mm
|
|
Min 1.6m - Max 3m
|
40mm
|
48mm
|
|
Min 1.8m - Max 3.2m
|
40mm
|
48mm
|
|
Min 2m - Max 3.6m
|
40mm
|
48mm
|
|
Min 2.2m - Max 4m
|
40mm
|
48mm
|
Light Duty Prop - Italian Prop ( Wall Thickness 1.4 - 2.75 mm ) | ||
|
Height
|
Inner Tube
|
Outer Tube
|
|
Min 1.6m - Max 3m
|
48mm
|
56mm
|
|
Min 1.8m - Max 3.2m
|
48mm
|
56mm
|
|
Min 2m - Max 3.6m
|
48mm
|
56mm
|
|
Min 2.2m - Max 4m
|
48mm
|
56mm
|
|
Heavy Duty Prop - Middle East Prop ( Wall Thickness 1.4 - 4 mm ) |
||
|
Height
|
Inner Tube
|
Outer Tube
|
|
Min 1.7m - Max 3m
|
48mm
|
60mm
|
Min 1.8m - Max 3.2m | 48mm | 60mm |
Min 2m - Max 3.6m | 48mm | 60mm |
|
Min 2.2m - Max 4m
|
48mm
|
60mm
|
|
Min 3m - Max 5m
|
48mm
|
60mm
|
|
Push - Pull Prop / Triangle Prop ( Wall Thickness 1.4 - 4 mm ) |
||
|
Height
|
Inner Tube
|
Outer Tube
|
Min 1.6m - Max 2.9m | 48mm | 60mm |
Min 1.8m - Max 3.2m | 48mm | 60mm |
|
Min 2m - Max 3.6m
|
48mm
|
60mm
|
|
Min 2.2m - Max 4.1m
|
48mm
|
60mm
|
|
Min 3m - Max 5m
|
48mm
|
60mm
|
