Threaded Galvanized Straight Steel Pipe Coupling
- Model
- Threaded Galvanized Straight Steel Pipe Coupling
Item specifics
- Surface
- Galvanized
- Special Galvanized Elbow Inner
- Lining Plastic Pipe Fittings
- Material
- Malleable Iron
- Suitable Applications
- Water, Oil, Gas, Petro-Chemical

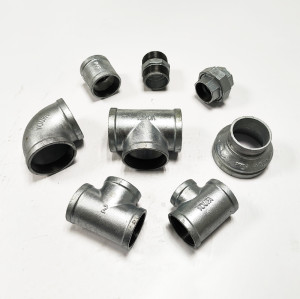

- Other Types of Galvanized Pipe Fittings
- Elbow, Reducer, Plug, Cap, Union, Nipple, Coupling
- MOQ
- 500 Units
Review
Description
Galvanized Thread Couplings
Threaded Galvanized Steel Pipe Coupling is widely used in both residential and industrial settings due to its reliability and ease of use. Both ends of the coupling have internal threads that match the external threads of the pipes being connected, to join two pipes of the same diameter in a straight line without changing direction.
Galvanized Threaded Coupling Technical Parameters
| MATERIAL | Malleable Iron |
| STANDARD | EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 |
| TYPE | steel pipe straight connectors |
SURFACE | Galvanized Zinc Coated |
HOT SALE GALVANIZED STEEL PIPE FITTINGS SIZE | Available in various sizes to match standard pipe diameters (e.g., 1/2", 3/4", 1", etc.). Dn15 1/2 inch steel pipe fittings; Dn50 2 inch steel pipe fittings; Dn80 3 inch steel pipe fittings; Dn100 4 inch steel pipe fittings; Dn150 6 inch steel pipe fittings |
SHAPE | Equal |
CONNECTION | Female Threaded |
CERTIFICATE | ISO UL Listed FM Approved |
PACKAGE | 1/2" - 2" in cartons; Above 2" in wooden cases. |
Galvanized Steel Pipe Coupling Types
Thread Galvanized Coupling Size Chart | |
| Norminal Size (mm/inch) | L |
| 15 (1/2) | 35 |
20 (3/4) | 38 |
25 (1) | 44 |
32 (1-1/4) | 49 |
40 (1-1/2) | 53 |
50 (2) | 63 |
| 65 (2-1/2) | 72 |
| 80 (3) | 77 |
| 100 (4) | 91 |
150 (6) | 118 |
Galvanized Coupling Applications
Commonly used in plumbing, water supply, gas lines, and industrial piping systems.
